MINI EXCAVATOR & SKID STEER
BY TYPHON MACHINERY USA
Official commercial equipment fleet and technical specifications database for TYPHON Machinery mini excavators and American skid steers in the USA. Precision-engineered with EPA-certified Kubota & Cummins engines, high-flow auxiliary hydraulics, and nationwide freight.

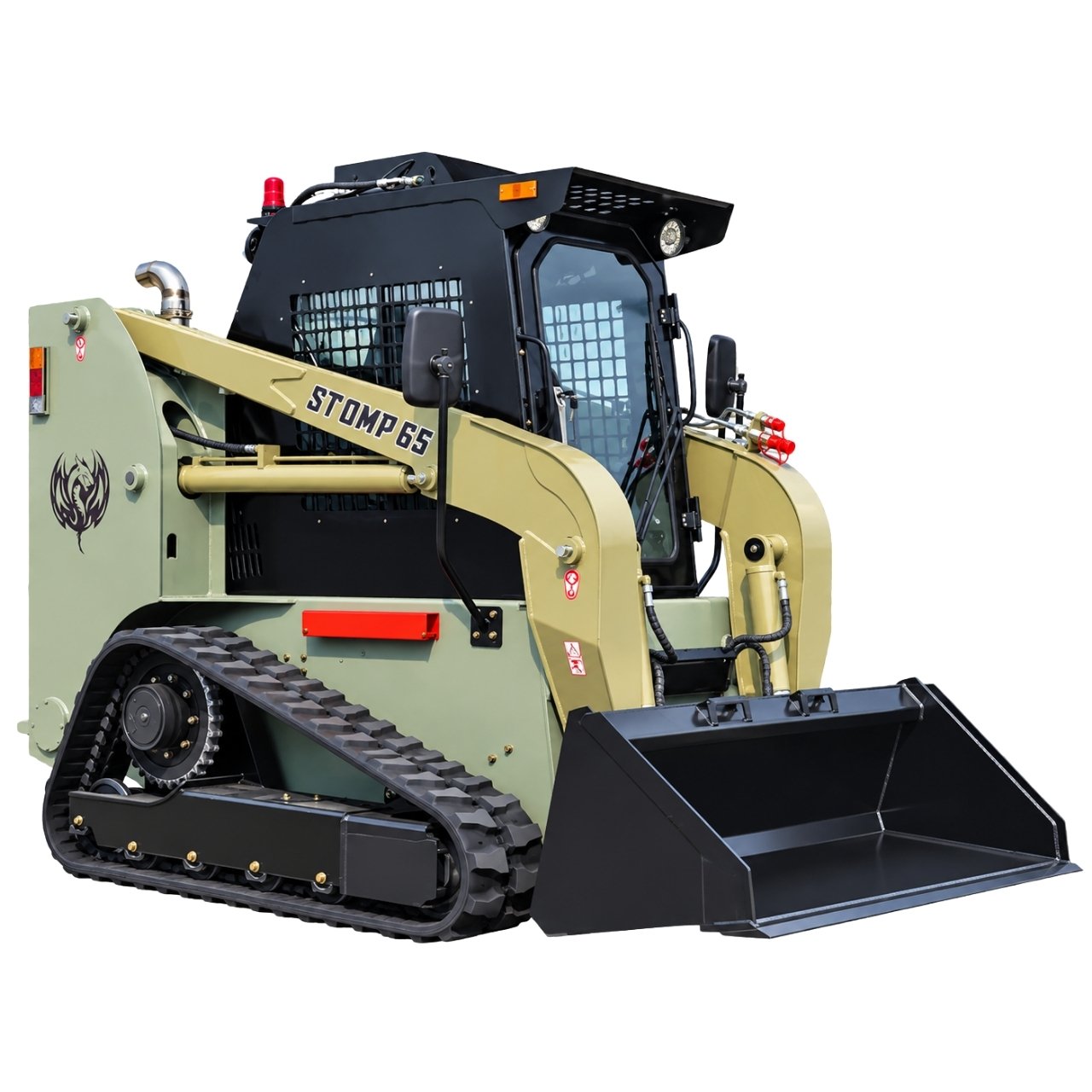

TYPHON STOMP 65 Tracked Skid Steer Engineering
American skid steer engineering with 9,000 lbs operating weight, zero-turn rubber track maneuverability, 31.7 GPM main hydraulic pump, and 74 HP Cummins QSF2.8 turbo-diesel power.
Cummins QSF2.8t4TC74 Engine
Water-cooled 4-cylinder inline 4-stroke turbo-diesel engine with electronic common-rail injection & 19.8 gal (75L) fuel tank.
31.7 GPM Main / 23.5 GPM Aux
High-pressure axial piston main pump (31.7 GPM @ 3,626 PSI) + gear auxiliary pump (23.5 GPM @ 3,046 PSI) for heavy augers & breakers.
0.50 m³ (17.66 ft³) Heavy Bucket
9,000 lbs operating weight (8,696 lbs machine) with 11.8" wide rubber tracks and 10 km/h (6.2 mph) max travel speed.
PROPACT Mini Excavator & Skid Steer Fleet
Commercial-grade mini excavator USA units and American skid steer loaders ready for nationwide delivery

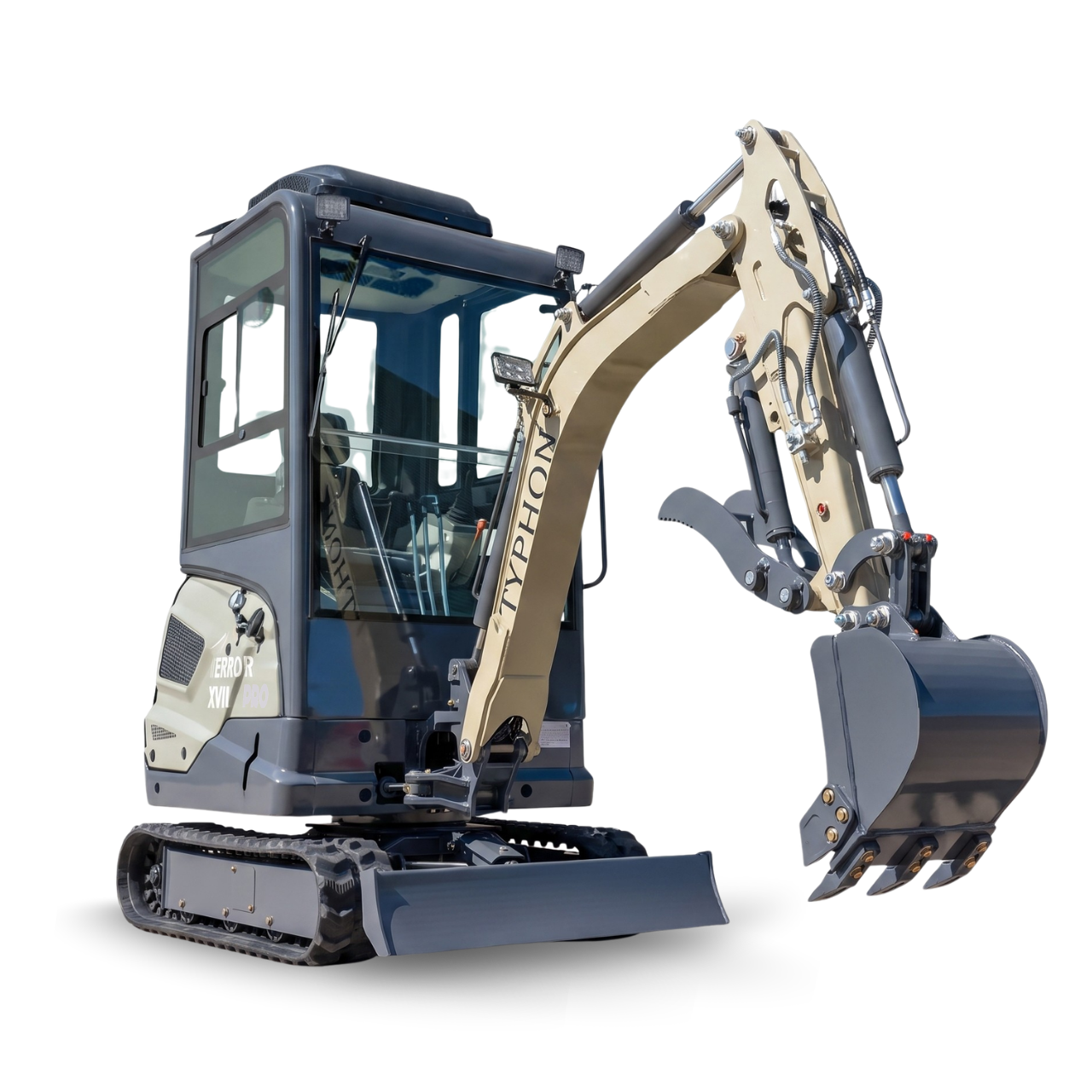

TYPHON TERROR XVII PRO Prestige 4,000 lb Mini Excavator with Kubota D902 Diesel Engine, Boom Swing, A/C & Heater
The TYPHON TERROR XVII PRO PRESTIGE combines trusted Kubota diesel power, a premium climate-controlled cabin, advanced hydraulics, strong digging capability, and attachment versatility into one professional compact excavator. Whether you're handling construction, trenching, landscaping, utility work, property development, or material handling, the TERROR XVII PRO PRESTIGE is built to help you work with greater power, comfort, and confidence.

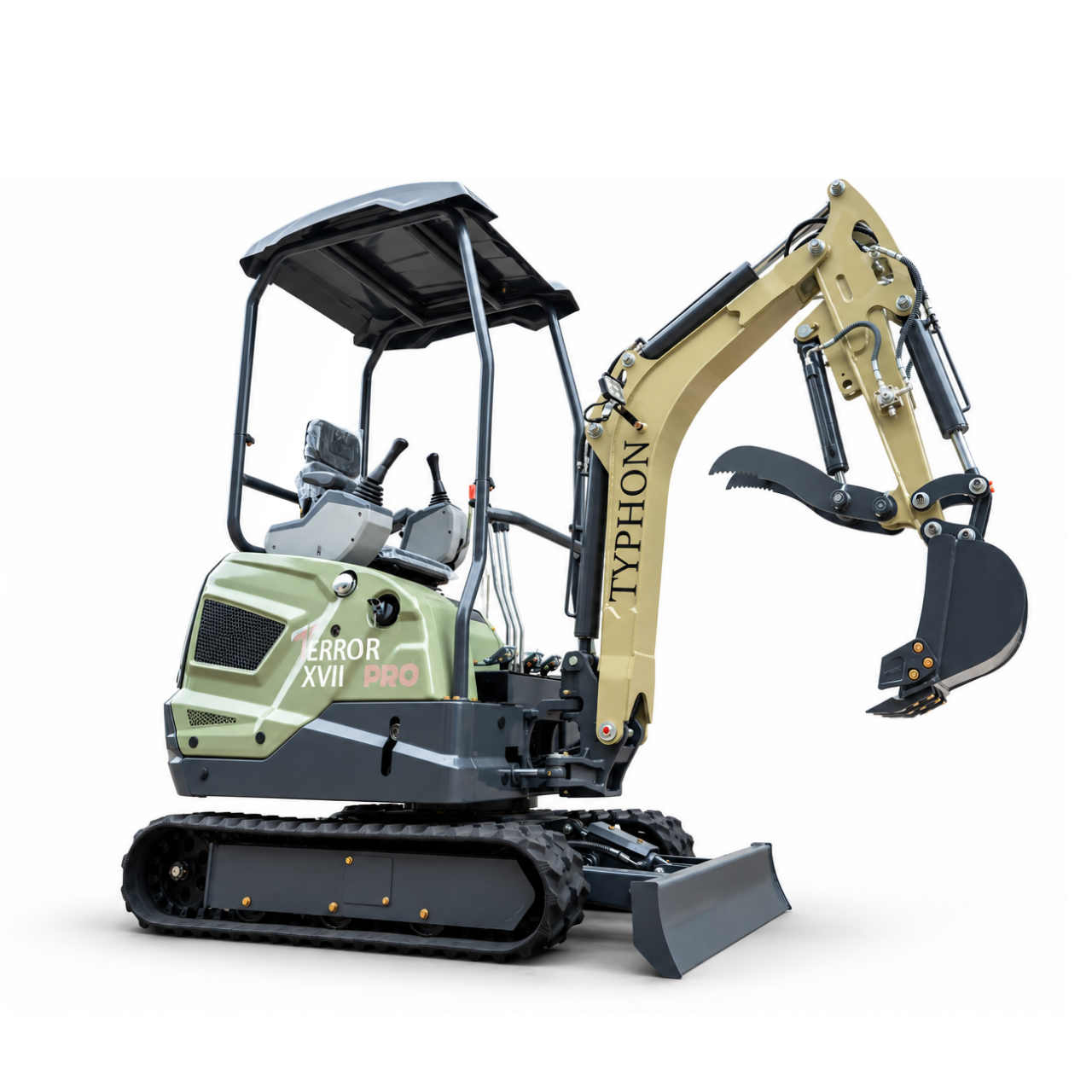

TYPHON TERROR XVII PROPACT Series - 4,000 lb Mini Excavator Canopy with Kubota D902 Diesel Engine
Powerful 2.0-ton mini excavator with Kubota D902 engine (11.8 kW), open canopy FOPS/ROPS protection, hydraulic pilot joysticks, 360° swing angle, and heavy-duty auxiliary hydraulics.

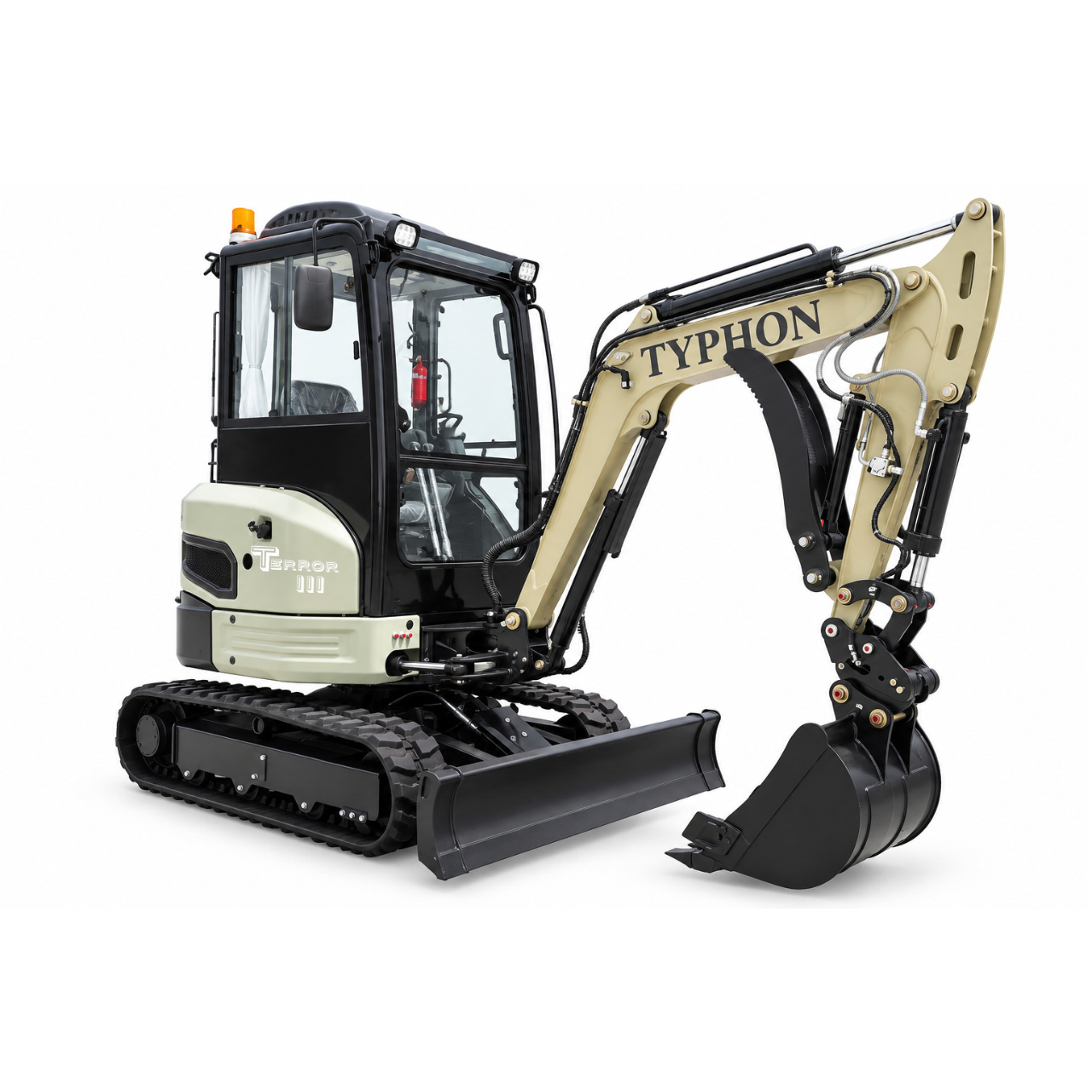

TYPHON TERROR III PROPACT Series – 6000 lb Mini Excavator with Kubota D1105 Diesel Engine, Side Swing, Retractable Rubber Track, AC & Heater Cabin
Introducing the TYPHON TERROR III PROPACT Series, a 6,000 lb compact mini excavator built specifically for jobsites that turn full-size machines away. Fenced yards, tight utility corridors, and zero-clearance foundation trenches are no longer a problem. Its compact footprint combines strong hydraulic performance, extended digging reach, and built-in grading capability, allowing it to handle excavation, trenching, backfilling, and site preparation in areas where larger equipment cannot easily operate.

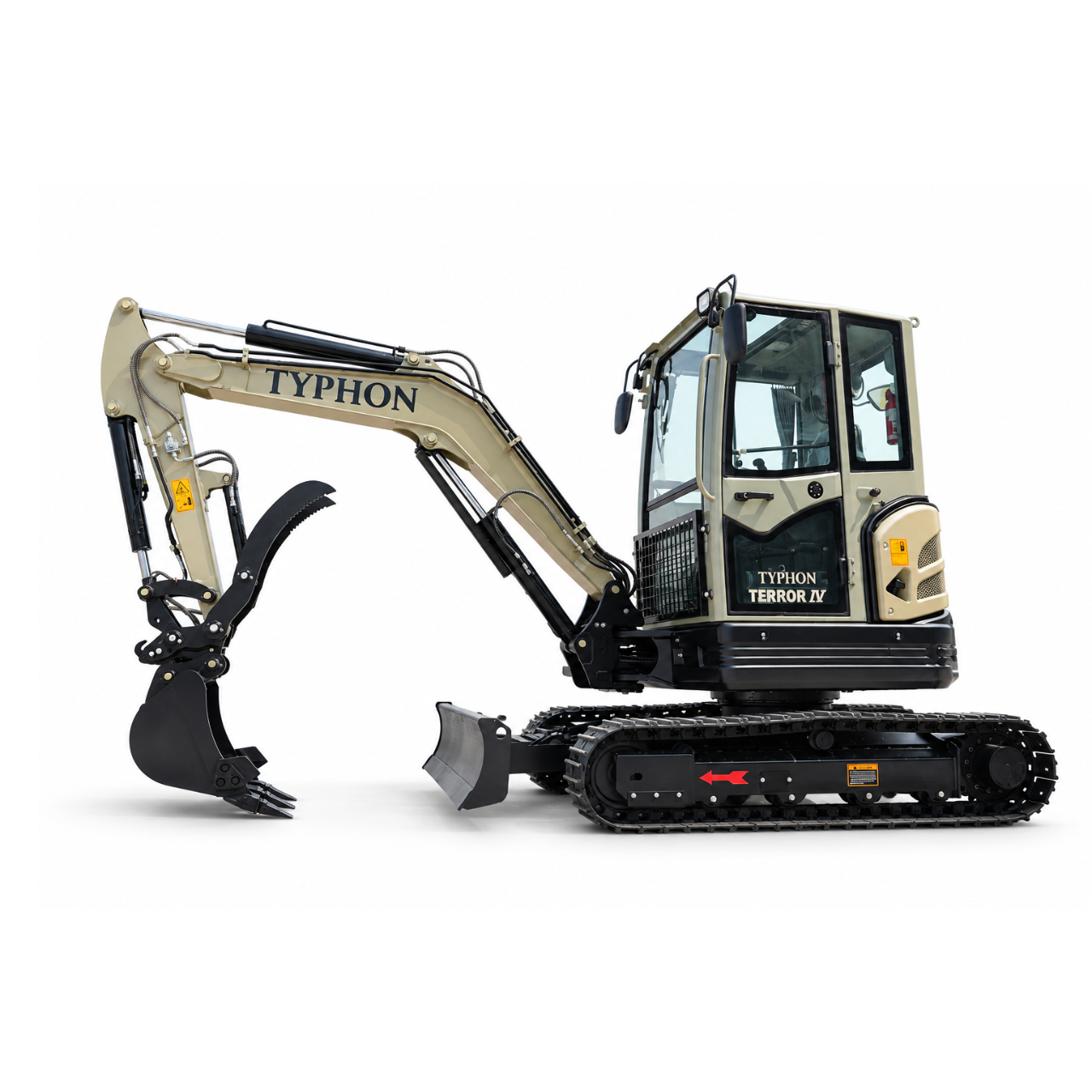

TYPHON Terror IV PROPACT Series – 9,000 lb Mini Excavator with Kubota D1703 3-Cylinder Diesel Engine, AC/Heater Cabin, Dual Speed Control & Metal Track
The TYPHON Terror IV PROPACT Series mini excavator brings serious muscle to job sites where room to work is scarce and downtime isn’t an option. At a well-balanced 9,000 lb operating weight, this compact machine tackles digging, trenching, grading, and material handling with steady force shift after shift. Equipped with Kubota D1703 3-Cylinder Diesel Engine, Premium AC/Heater Cabin, Dual Speed Control (1.4/2.5 mph), Heavy-duty Metal Tracks, Piston Pump & Load Sensing Valve (up to 23.2 GPM), and Zero Tail Swing.

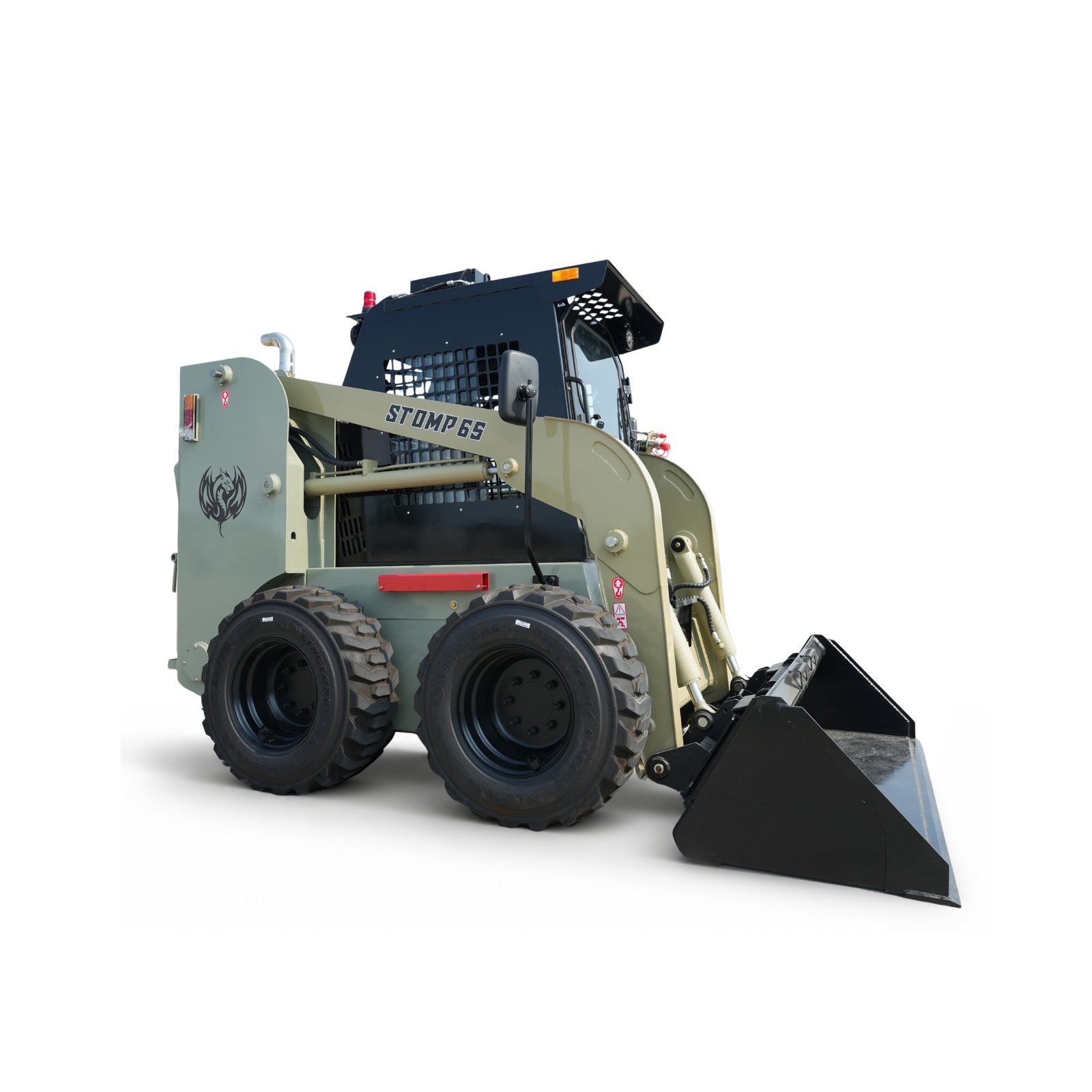

TYPHON STOMP 65 4WD 8,000 lb 74 HP Skid Steer Loader PROPACT Series, Cummins Diesel, High-Flow Italian PWG Hydraulics & 2,200 lb Rated Load
The TYPHON PROPACT Series STOMP 65 (WHEEL) is a 4-wheel-drive skid steer loader built for operators who need traction, speed, and reach on solid, improved, and mixed surfaces. Powered by a 74 HP Cummins diesel engine and an Italian PWG dual hydraulic system, this wheeled machine rolls smoothly across pavement, gravel, and packed ground while delivering the lifting muscle demanded by construction, agriculture, landscaping, and property maintenance.

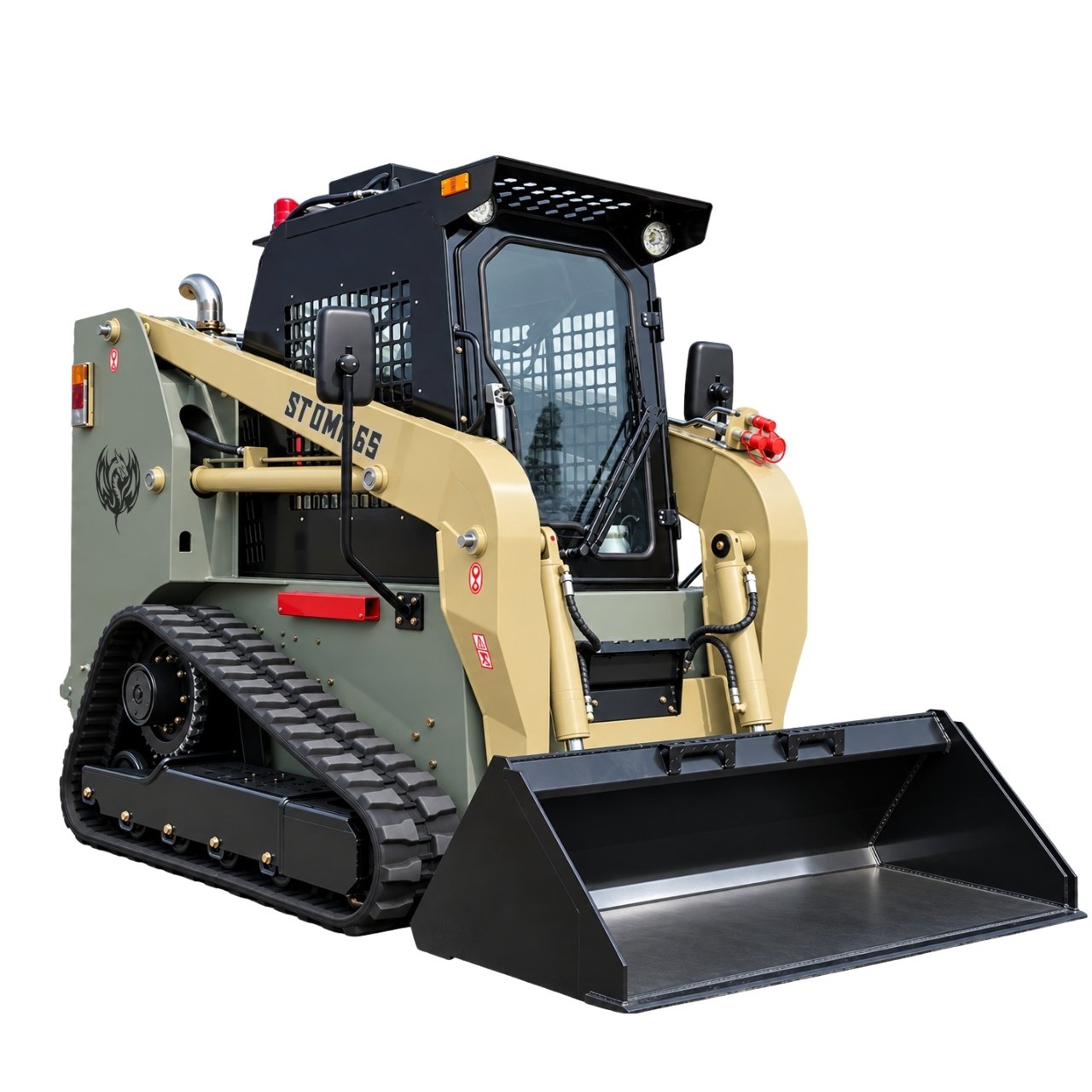

TYPHON STOMP 65 PROPACT Series - 9,000 lbs 74 HP Skid Steer Loader, Cummins 4-Cylinder Diesel USA Engine, High-Flow Hydraulics & AC/Heater Cab
The TYPHON STOMP 65 PROPACT Series is a heavy-duty skid steer loader built for power, versatility, and operator comfort. Powered by a reliable 74 HP Cummins diesel engine and an Italian PWG dual hydraulic system, it delivers the hydraulic performance and lifting capability needed for construction, agriculture, landscaping, and property maintenance.
TYPHON STOMP 65 Skid Steer & Track Loader
Toggle between Rubber Tracked and Heavy-Duty Wheeled American skid steer variants to inspect hydraulic flow, Cummins engine ratings, ground pressure, and real-time operational payload metrics.
Soft mud, uncompacted soil, wet clay, sand, slopes, steep rough terrain & low-flotation turf jobs.
STOMP 65 TRACKED LOAD
Compact American Excavator In Action
High-definition video documentation demonstrating zero-tail swing stability, boom reach, and hydraulic versatility of our mini excavator USA lineup in actual commercial excavation environments.
TERROR Mini Excavator USA Series Stage
Select between TERROR mini excavator models to inspect technical specifications, genuine Kubota diesel configurations, and hydraulic capabilities by TYPHON Machinery.
TERROR III
Kubota D1105 Diesel Power & 28.5 GPM High Hydraulic Flow
- Kubota D1105 3-cylinder vertical water-cooled diesel engine (24.8 HP @ 3,000 RPM)
- 28.5 GPM (108 L/min) high-flow hydraulics with 20 MPa (2,901 PSI) system pressure
- 23 kN (5,170 lbf) bucket digging force & 49.6–59.1 in retractable track width
STOMP 65 American Skid Steer Comparison
Direct engineering telemetry comparison between high-flotation rubber tracks and high-traction wheel chassis by TYPHON Machinery.
STOMP 65 Track Loader
High-flotation 9,000 lbs rubber-tracked skid steer engineered for uncompacted mud, wet clay, steep grades, and high-flow heavy attachments.

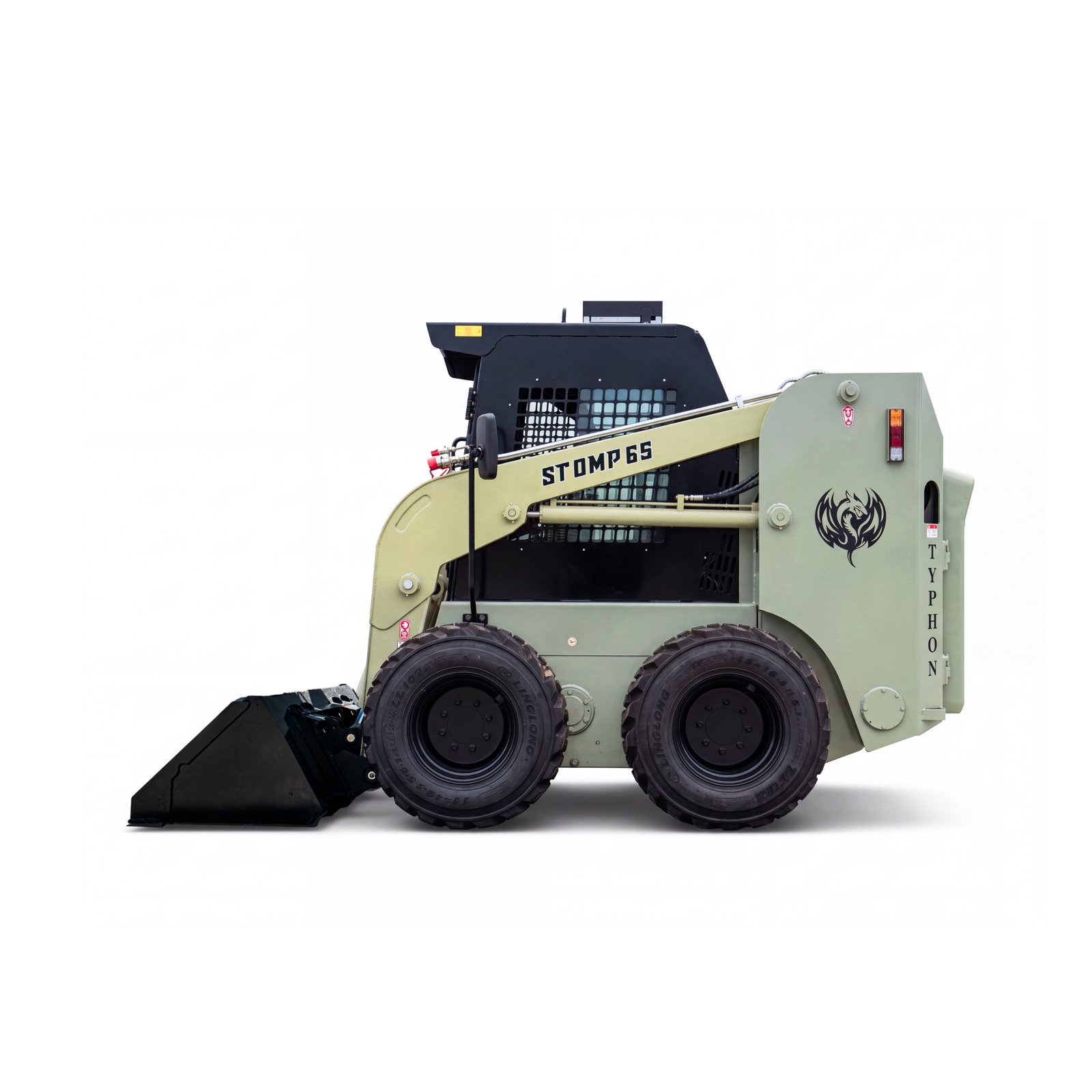

STOMP 65 Wheel Loader
High-speed 8,000 lbs 4-wheel drive skid steer featuring heavy-duty 12-16.5 tires for paved roads, concrete yards, and rapid material transfer.
Engineering Specification & Advantage Breakdown
Showing 9 Specs| SPECIFICATION PARAMETER | STOMP 65 TRACKED LOADER | STOMP 65 WHEELED SKID STEER |
|---|---|---|
Operating WeightMass & Stability | 9,000 lbs (4.08 Ton)★ ADVANTAGE | 8,000 lbs (3.62 Ton) |
Rated Load CapacityPayload Rating | 2,400 lbs★ ADVANTAGE | 2,200 lbs |
Engine HorsepowerCummins Turbo Power | 74 HP Cummins QSF2.8 | 74 HP Cummins QSF2.8 |
Ground Flotation PressureSoil Protection | 4.2 PSI (Low Ground Pressure)★ ADVANTAGE | 34.5 PSI (High Point Load) |
Max Travel SpeedRoad Transit Speed | 10 km/h (6.2 mph) | 12.5 km/h (7.8 mph)★ ADVANTAGE |
Main Hydraulic FlowAux Attachment Power | 31.7 GPM (120 L/min)★ ADVANTAGE | 23.5 GPM (89 L/min) |
Auxiliary PressureBreakout Hydraulic Pressure | 3,626 PSI (25 MPa)★ ADVANTAGE | 3,046 PSI (21 MPa) |
Ground Traction SystemTerrain Coupling | 11.8" Rubber Tracks (82 Links) Soft Mud & Slopes | 12-16.5 Heavy Duty NHS Tires Asphalt & Concrete |
Turning ManeuverabilityTight Site Turning | 360° Zero-Turn Counter Rotation | 360° Skid Steering Radius |
Engineering Recommendation Summary
Select Tracked Loader for soft mud, wet clay, uncompacted soil & steep side slopes. Select Wheeled Skid Steer for paved roads, concrete yards, asphalt demolition & higher transit speed.
Mini Excavator & Skid Steer Technical Wiki
Expert engineering articles on TERROR XVII PRO Cabin, STOMP 65 American skid steer, and mini excavator USA maintenance guides.
Dumper Machine Mistakes & How to Avoid Tip-Overs on Construction Sites
Discover the most critical site dumper operating mistakes, why dynamic tip-overs happen on slopes, and practical engineering protocols to protect operators and payloads.
Scissor Lift vs. Forklift: Choosing the Right Equipment for Elevated Work
Comparing scissor lifts and forklifts: analyze working height, platform payload capacity, OSHA safety regulations, and jobsite cost factors.
Why a Scissor Lift Level Working Surface is Critical for Jobsite Safety
Understand the critical physics behind scissor lift stability, how a mere 3-degree grade causes elevated rollovers, and how to verify ground bearing capacity.
TYPHON Machinery USA Deliveries & Logistics
Real customer handovers and job-site arrivals of mini excavators and American skid steers across the United States.
Customer Mini Excavator Handover

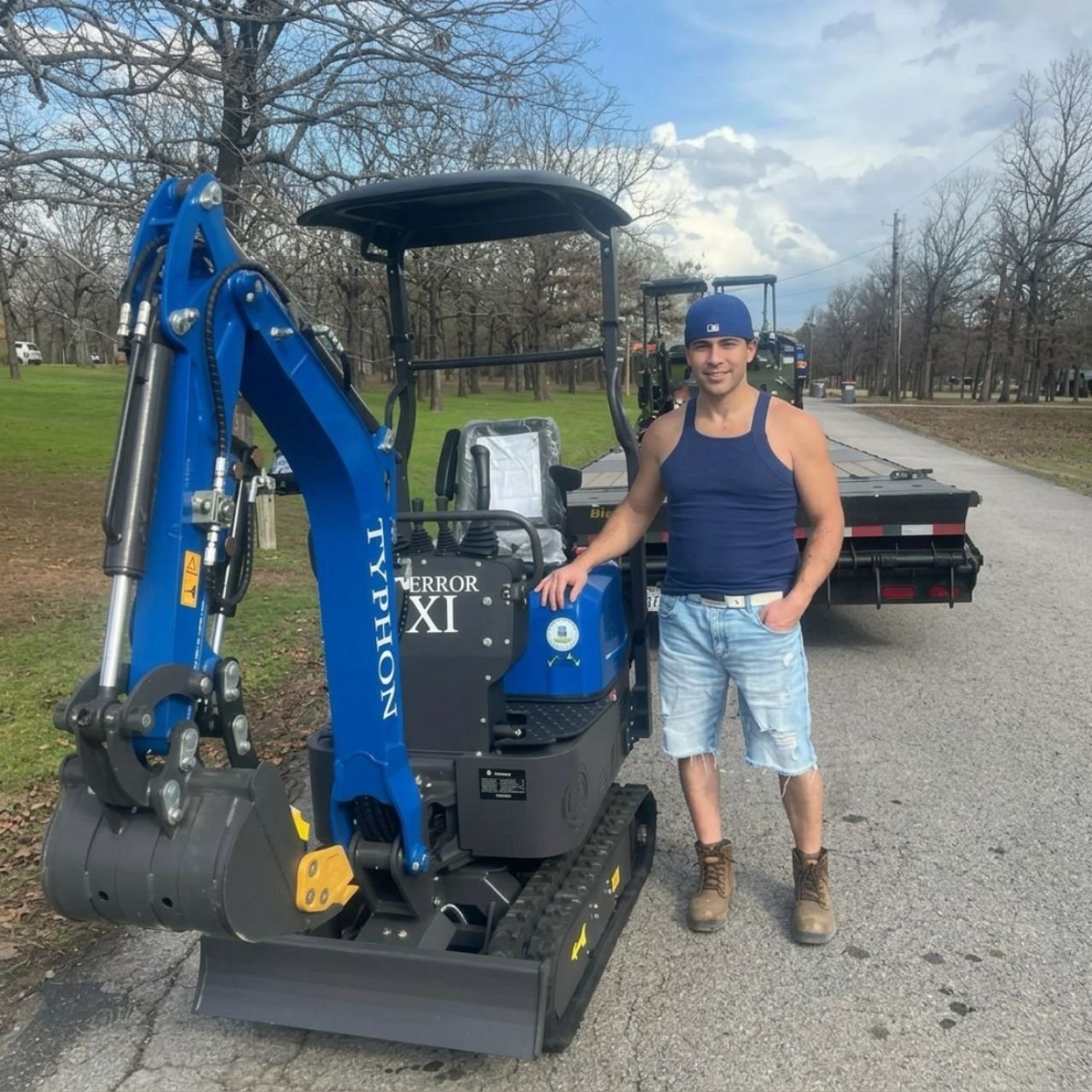

Terror X Mini Digger Site Arrival
Compact Road Roller Jobsite Dispatch
Mini Skid Steer Loader Transport
Heavy Excavator Direct Transport
Mini Excavator Flatbed Delivery

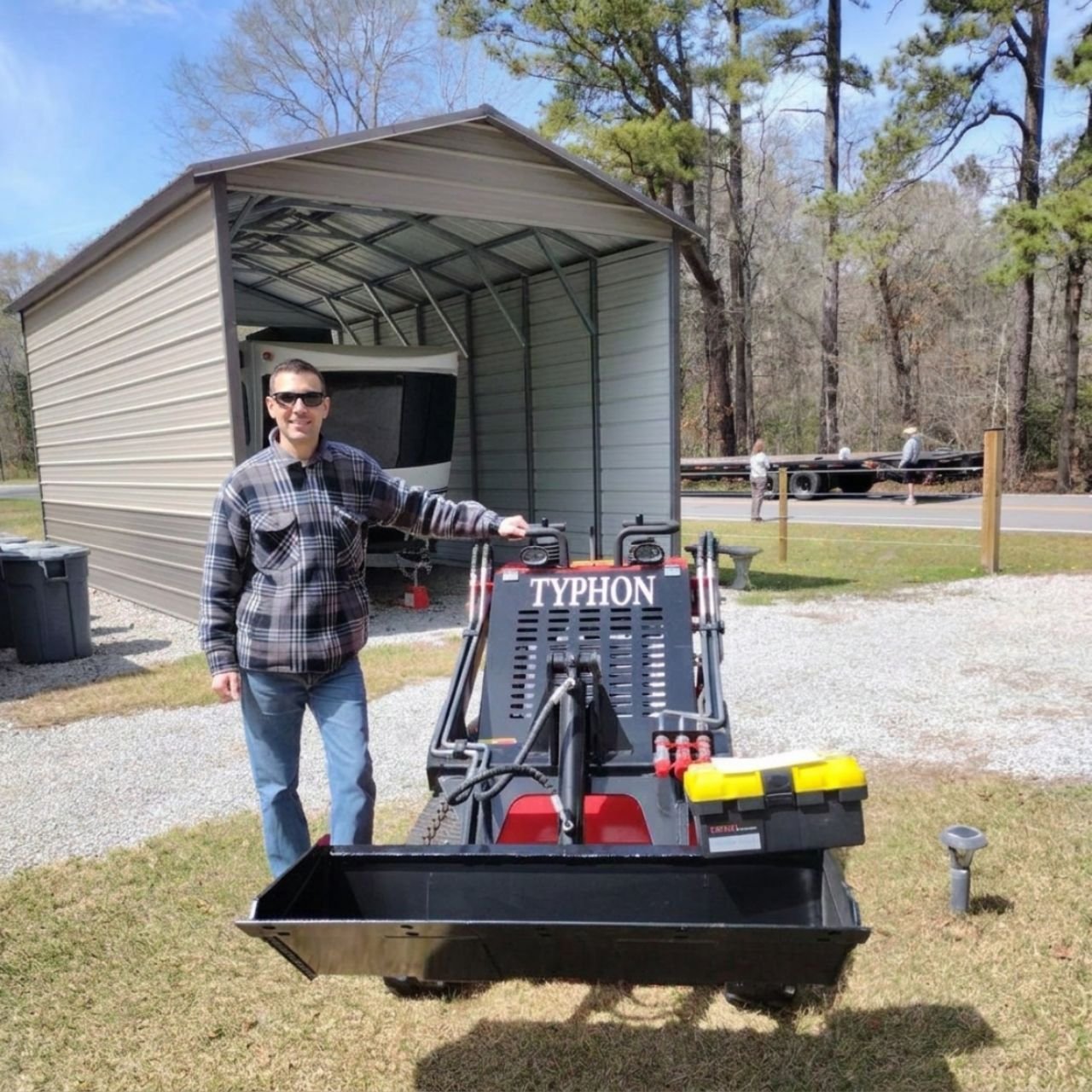

STOMP 501 Skid Steer Transport

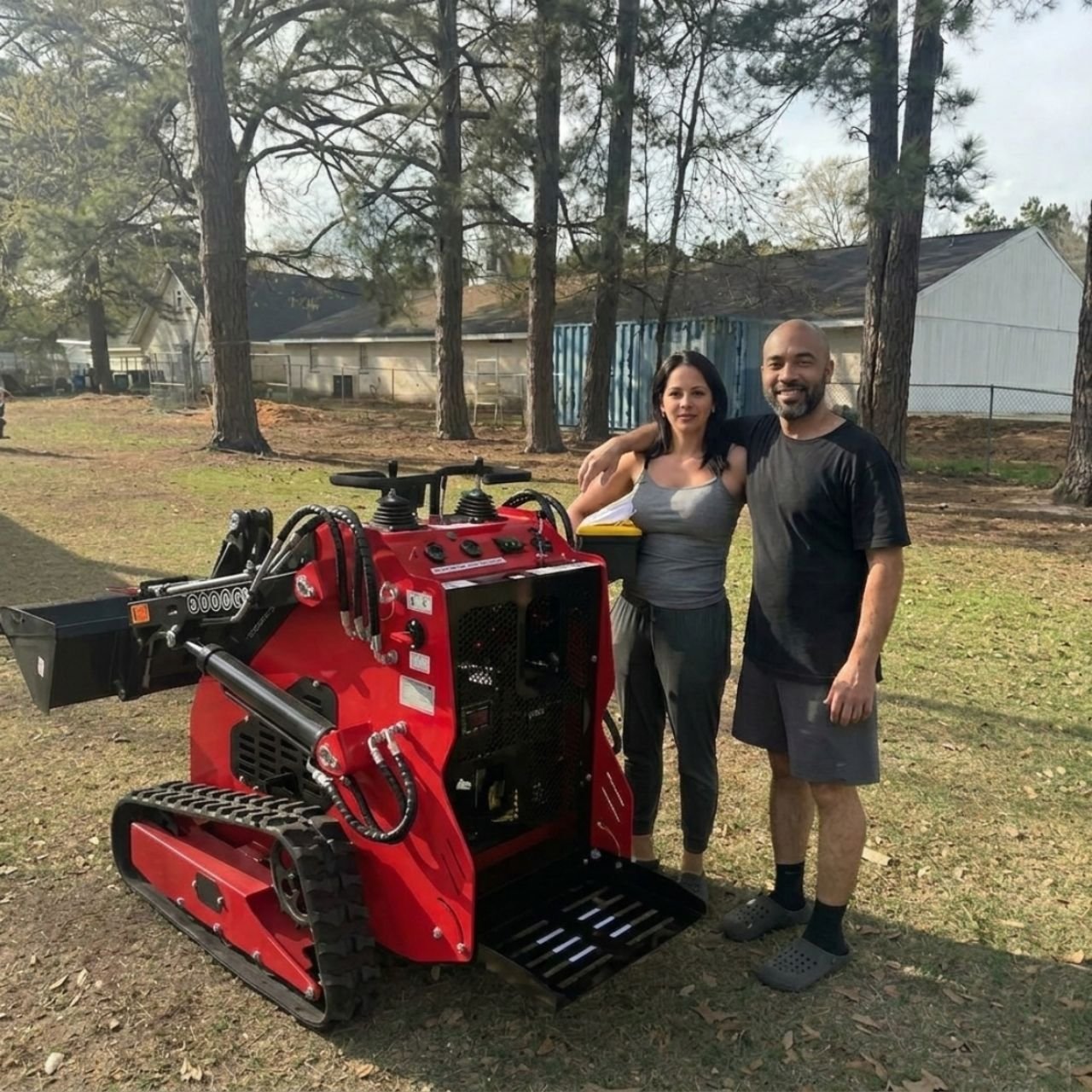

STOMP 504 Mini Skid Steer Delivery

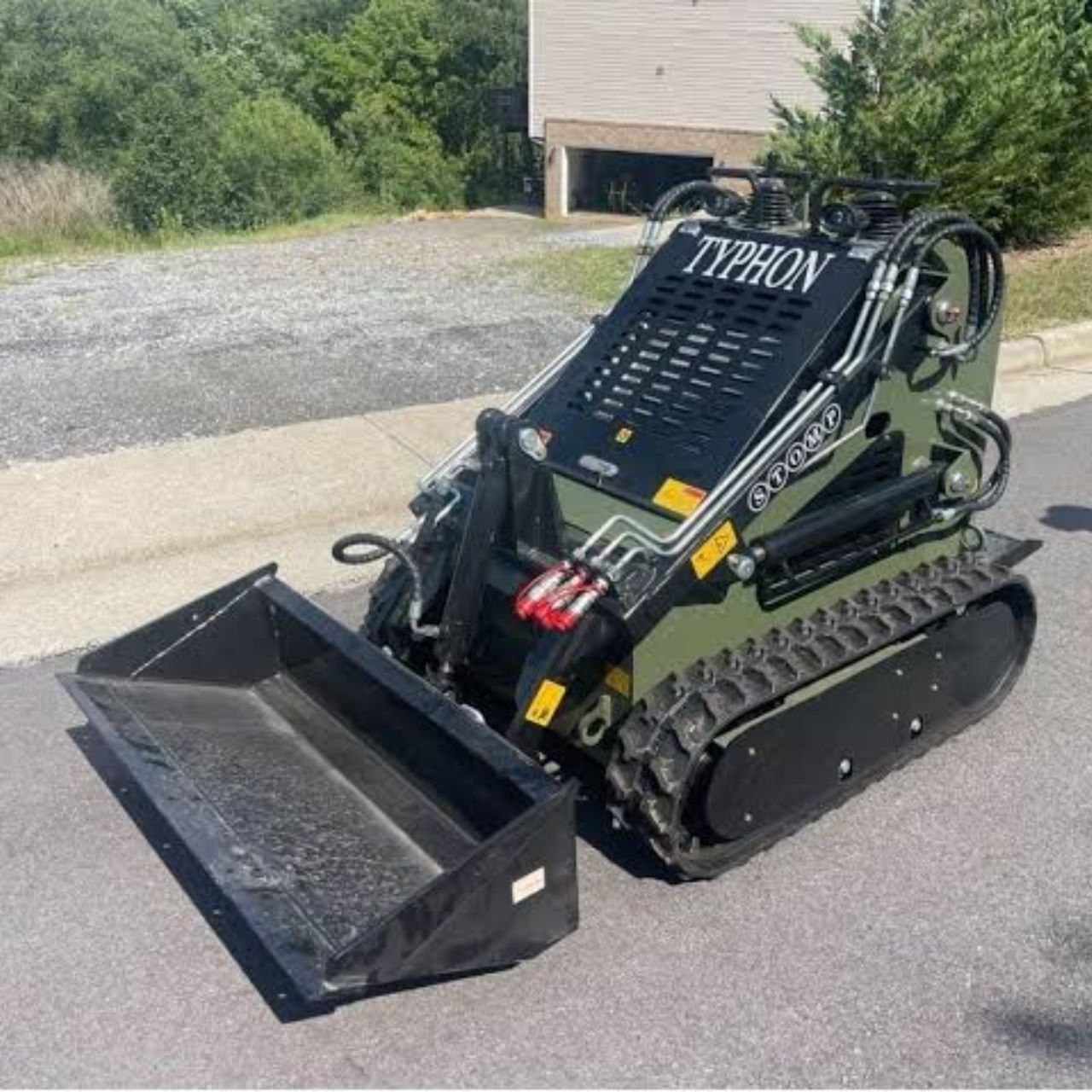

Skid Steer Loader Field Handover

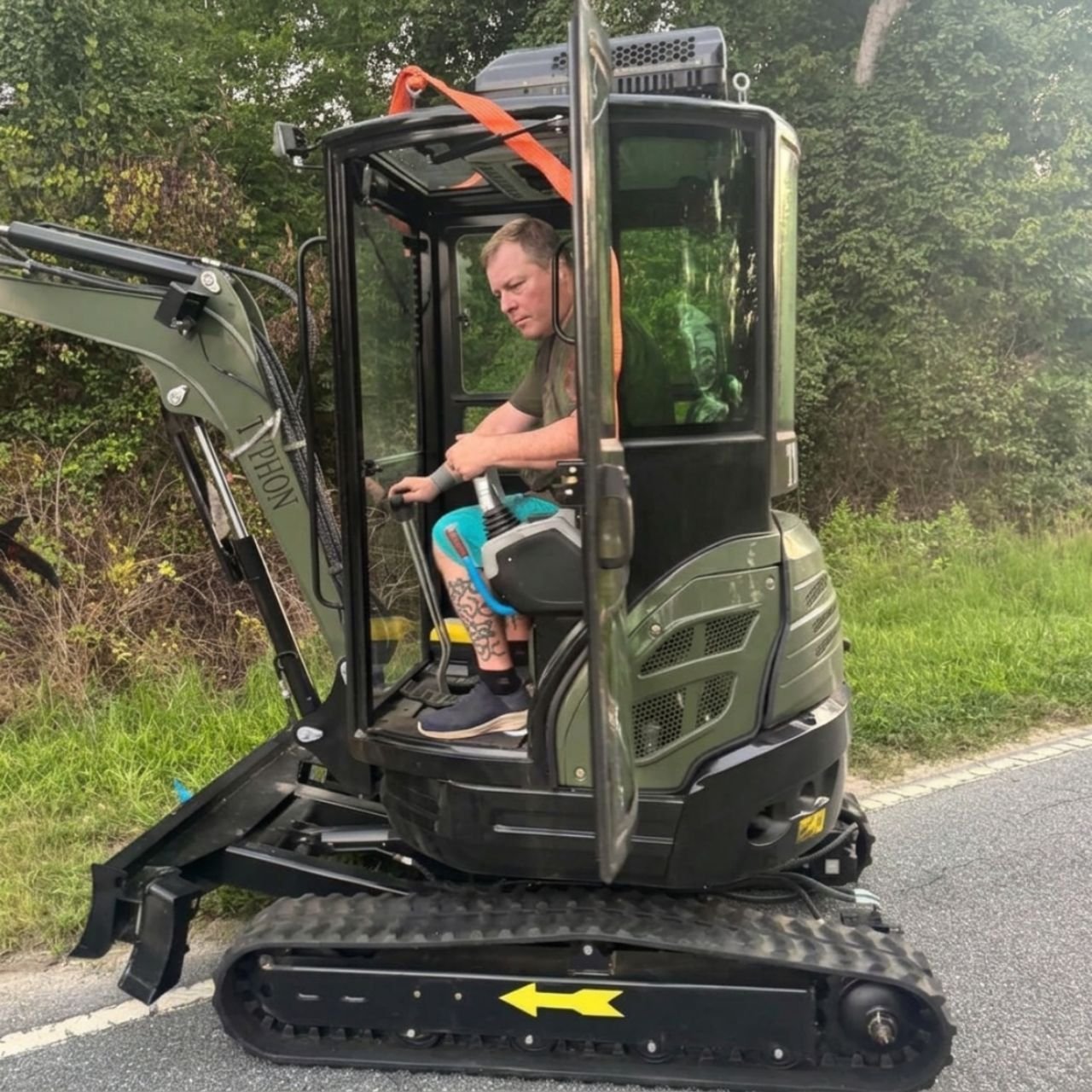

Heavy Tracked Loader Overland Haul

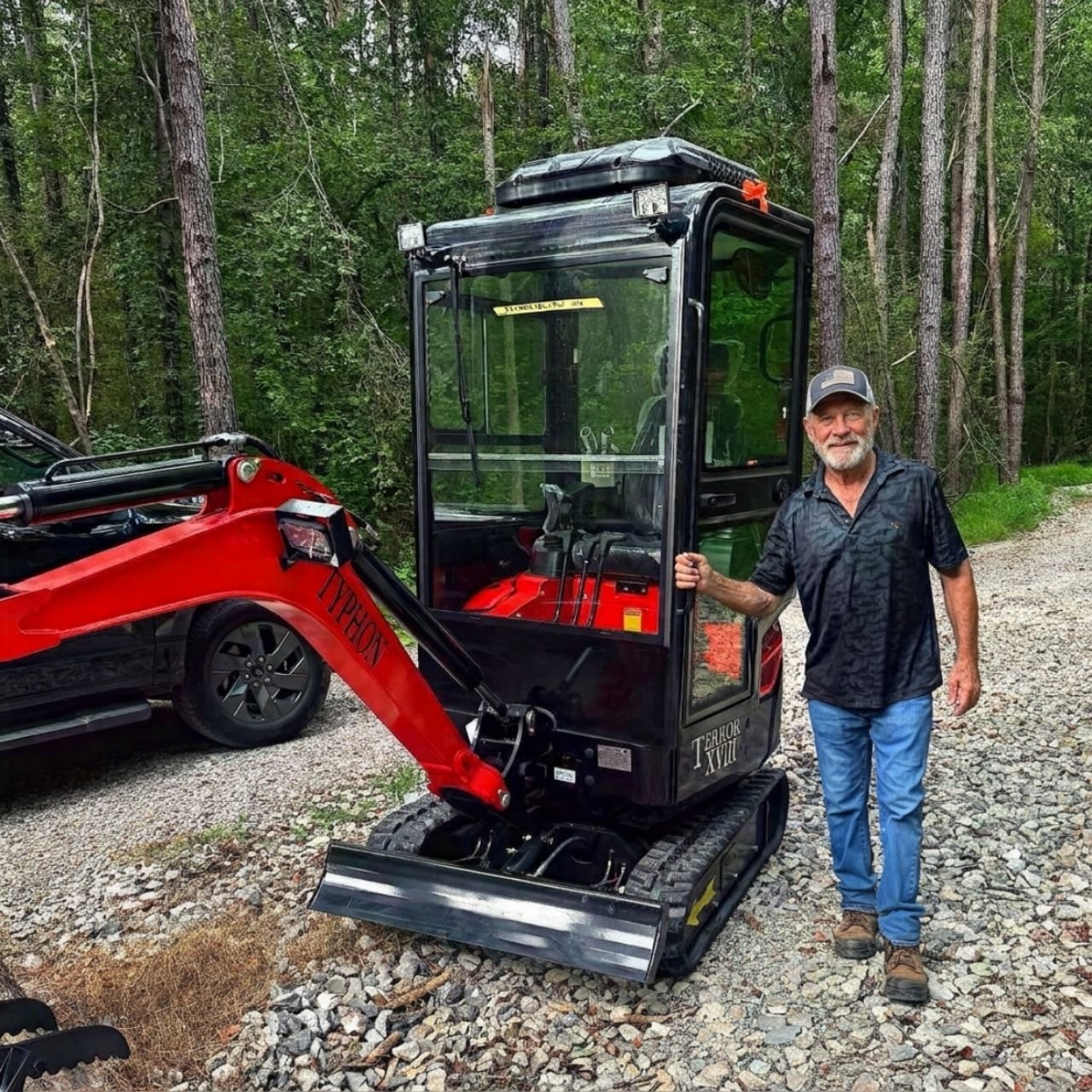

Custom Paint Terror Digger Delivery

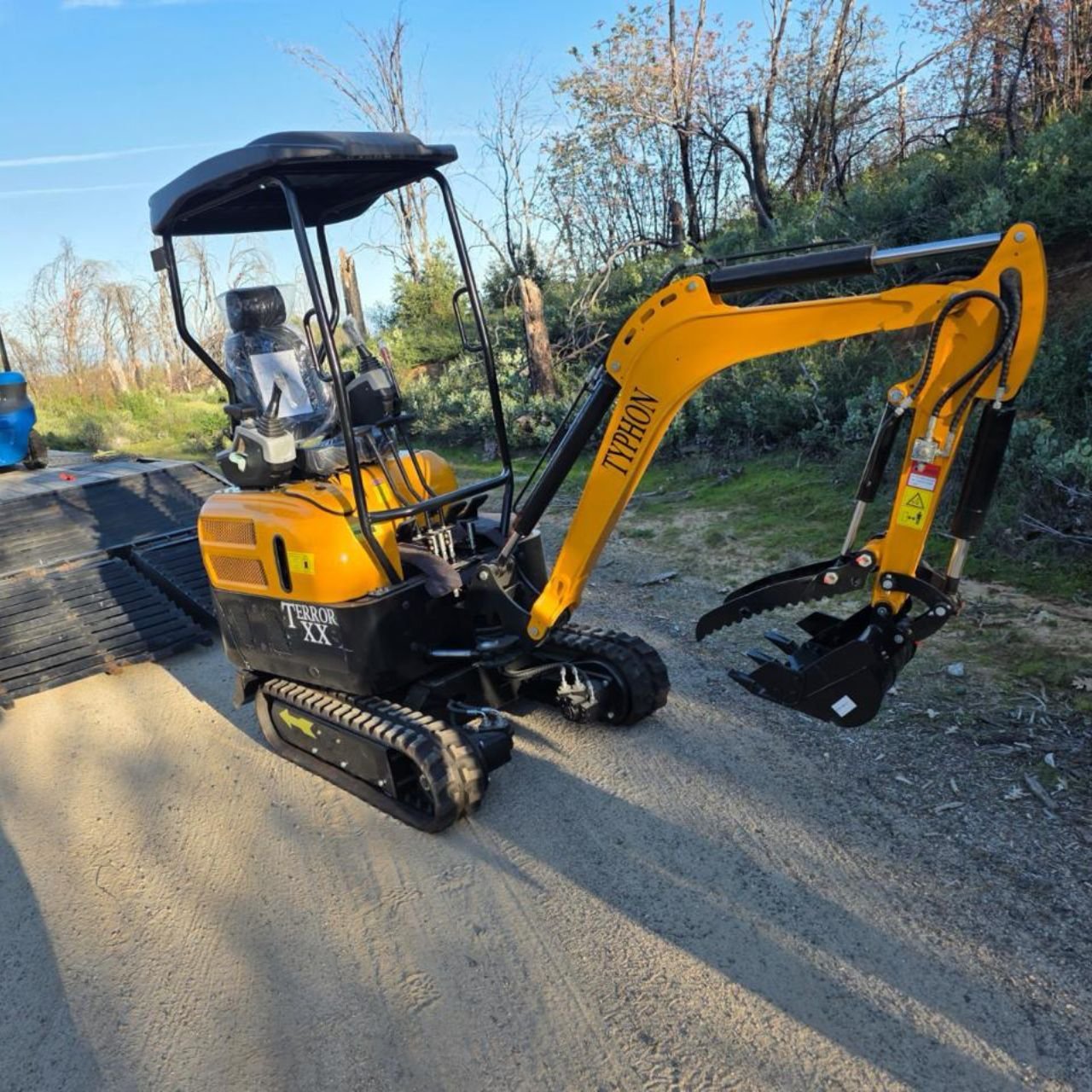

Compact Loader Customer Staging
Rated 4.9 / 5.0 by 280+ USA Contractors
Real commercial jobsite field feedback on TYPHON TERROR mini excavators, genuine Kubota D902 diesel reliability, STOMP 65 skid steers, and fast logistics dispatch from Commerce, California.
Mark Henderson
Henderson Trenching & Utilities LLC • Austin, Texas
"We have put over 350 continuous operating hours on our TERROR XVII PRO Cabin digging utility and drainage trenches across central Texas. The genuine Kubota D902 diesel engine never lugs under load, fuel economy is right at 0.42 gal/hr, and the pilot Lufthansa joysticks are exceptionally smooth. The climate-controlled A/C cabin made 102°F summer days completely workable. 5/5 stars without hesitation."
Dave Rinaldi
Rinaldi Site Prep & Excavation • Columbus, Ohio
"Shipped directly from the Commerce, California warehouse and arrived at our Ohio yard in 4 business days in heavy-duty steel crating. The high-flow hydraulics run our tree mulcher and 18-inch auger without breaking a sweat. Outstanding steel build quality, heavy undercarriage rollers, and responsive technical support."
Carlos Mendez
Mendez Foundation & Concrete Specialists • Riverside, California
"The narrow 36-inch width lets us walk right through standard residential gates that would stop any standard skid steer. The independent boom swing allows us to trench directly flush against house foundations without the cab swinging into the siding. Zero hydraulic leaks, clean hose routing, and great customer care."
Jason Miller
Miller Commercial Earthmoving • Tampa, Florida
"Exceptional breakout power and hydraulic stability. We used the factory hydraulic breaker attachment to bust up 8-inch reinforced concrete pool pads. The machine held its ground without shaking and stayed cool throughout full 9-hour shifts. A true 4.9/5.0 commercial rating well earned."
TYPHON Mini Excavator & Skid Steer FAQs
Everything you need to know about TERROR mini excavators, STOMP American skid steers, hydraulic breakout power, and factory support.
